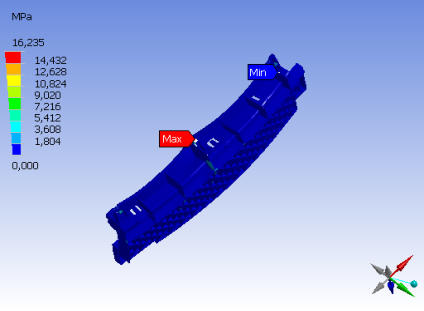

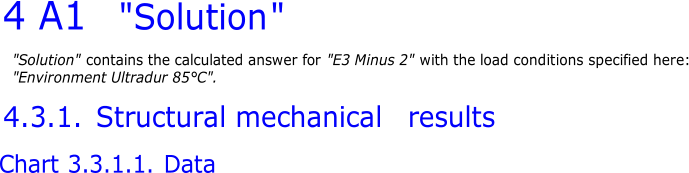

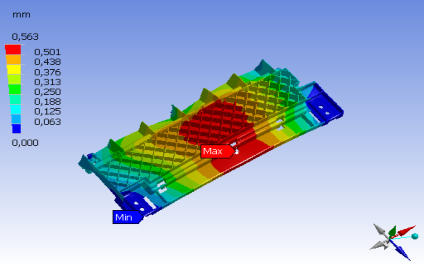

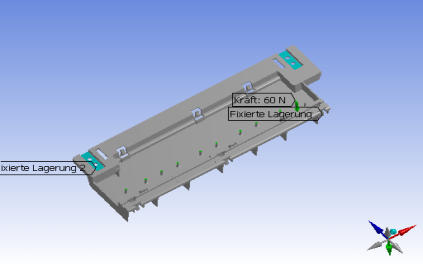

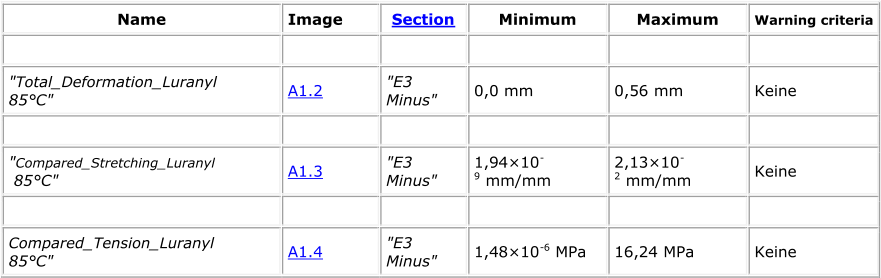

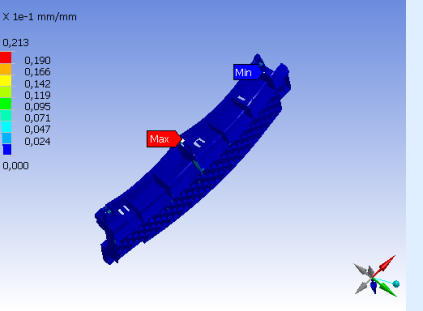

Name Image Section Minimum Maximum Warning criteria "Total_Deformation_Luranyl 85°C" A1.2 "E3 Minus" 0,0 mm 0,56 mm Keine "Compared_Stretching_Luranyl 85°C" A1.3 "E3 Minus" 1,94×10 - 9 mm/mm 2,13×10 - 2 mm/mm Keine Compared_Tension_Luranyl 85°C" A1.4 "E3 Minus" 1,48×10 - 6 MPa 16,24 MPa Keine 4 A1 "Solution " "Solution" contains the calculated answer for "E3 Minus 2" with the load condit i ons specified here: "Environment Ultradur 85°C". 4.3.1. Structural mechanical results Chart 3.3.1.1. Data A1. S c enario 1 Images Image A1.1. " Environment Luranyl 85°C" Image A1.2." Total_Deformation Luranyl 85°C" Geometry Contours Image A1.3. " Compared_Stretching Luranyl 85°C" Image A1.4. " Compared_Tension _Luranyl 85°C" Contours Contours
